Bond Bug ZZR1400 Project

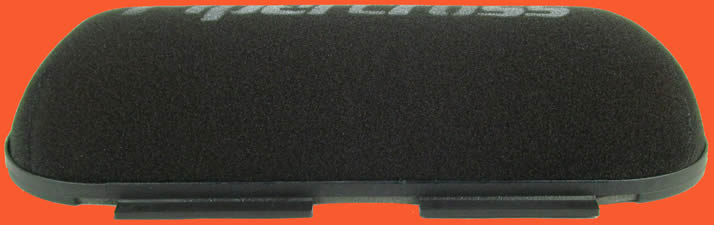

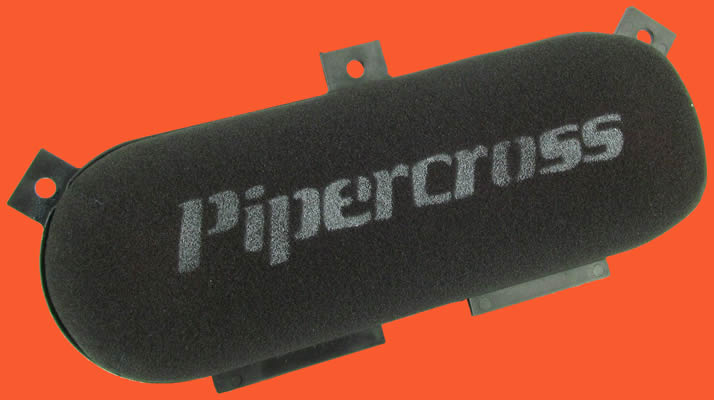

I have replaced the existing Pipercross PX500 domed filter with a far better Piper PX600 system. I have a new baseplate being machineed to fit the ZZR 1400 engine.

This allows all the carbs to be fed by cold air from outside the engine bay increasing performance.

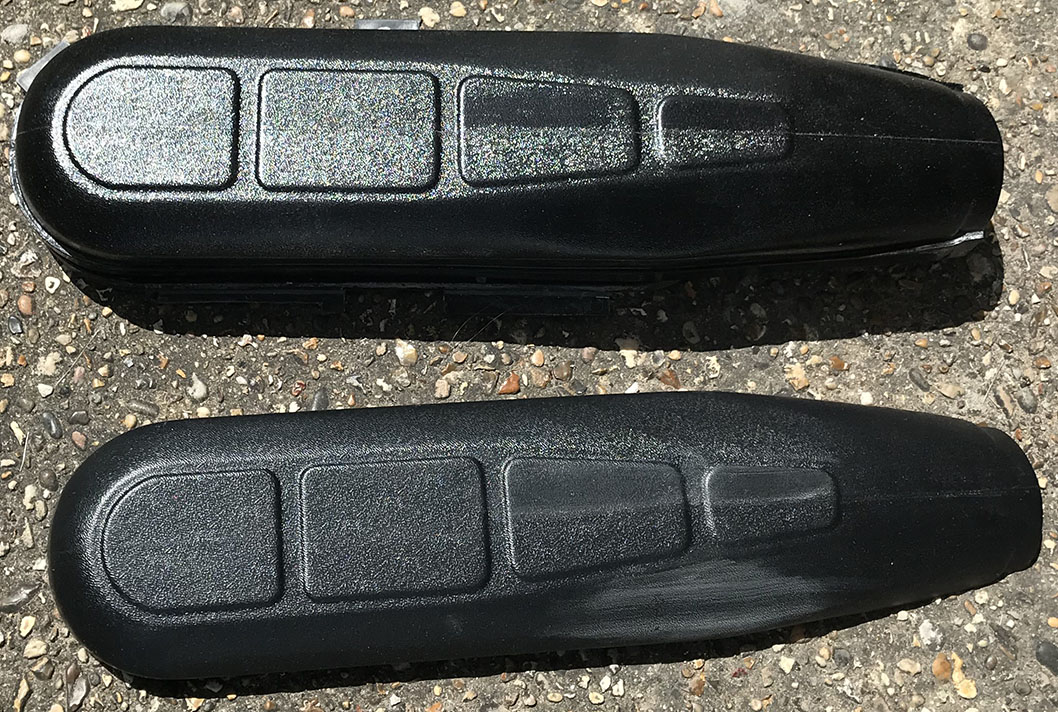

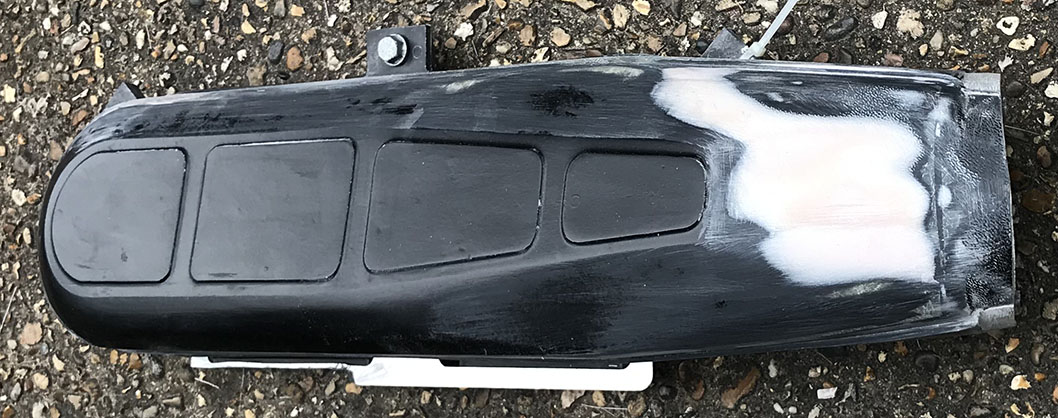

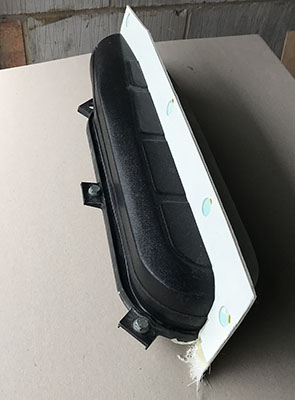

Finished custom sized air filter box

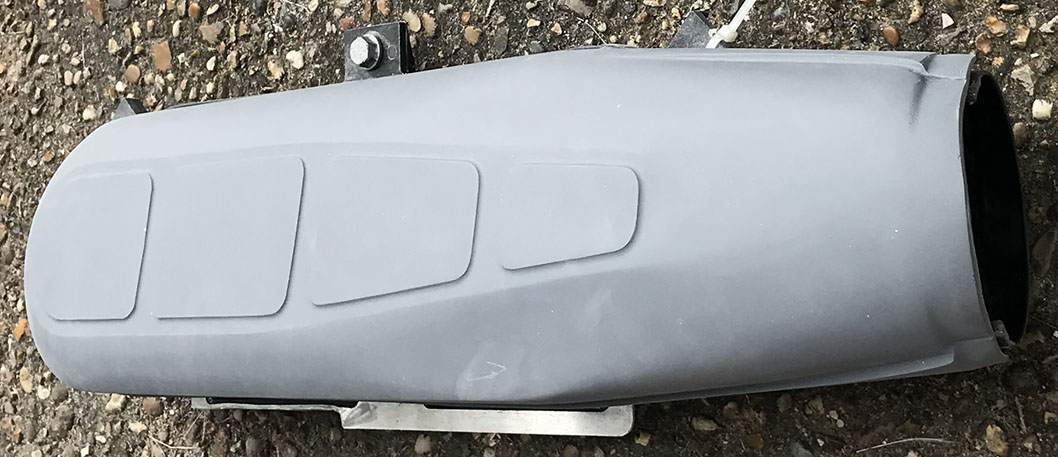

Custom shaped new filter box

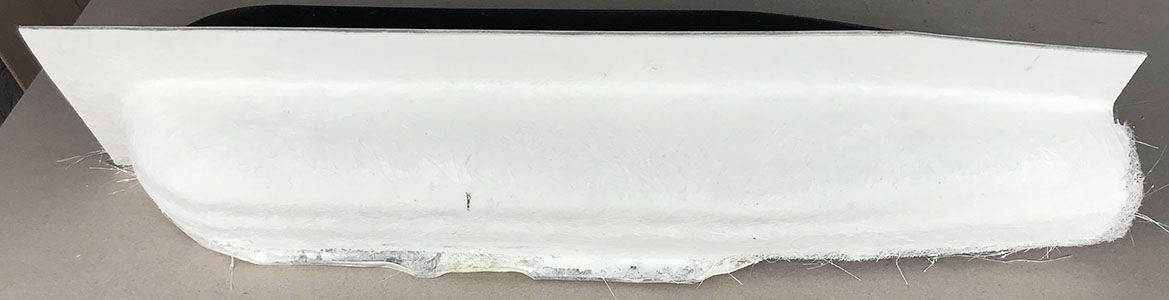

New air filter box remade in fibre glass

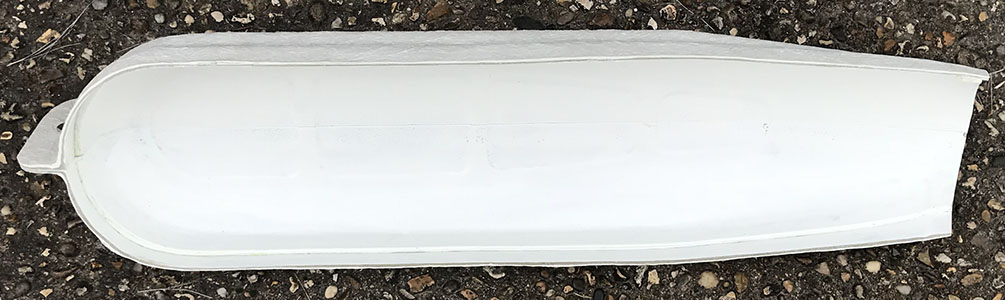

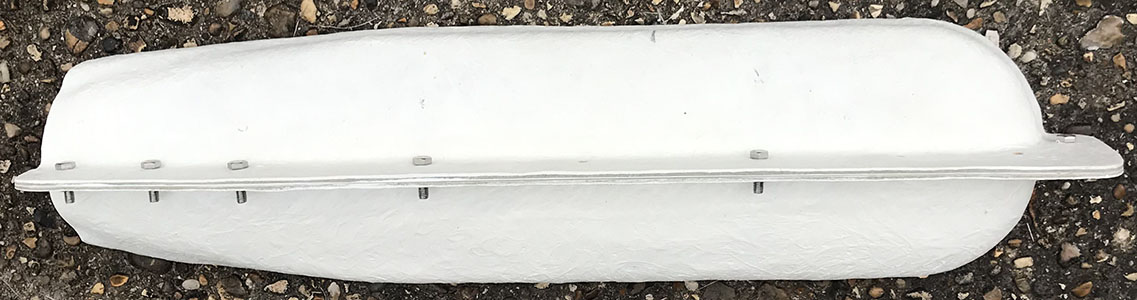

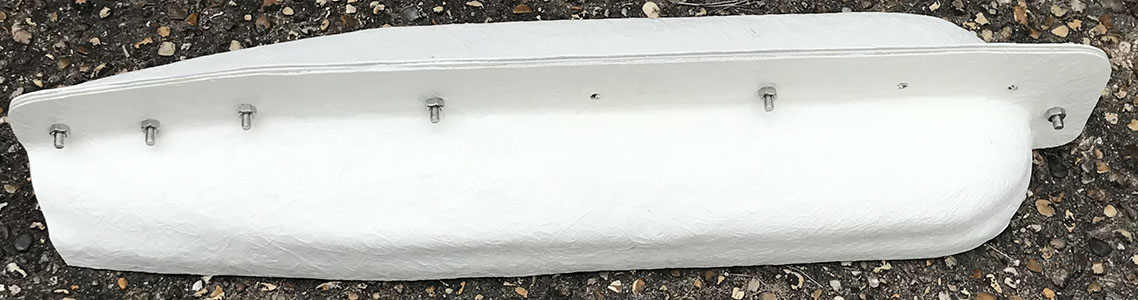

Split mould now formed

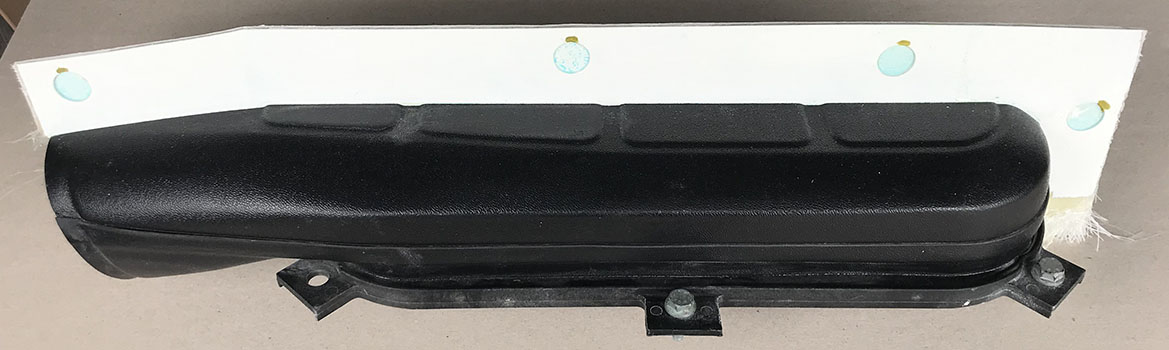

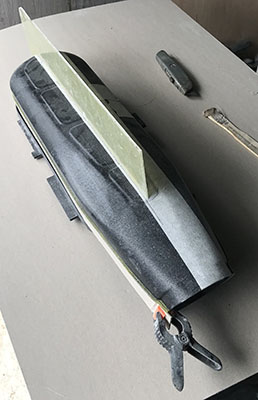

Making a mould to produce a custom air filter box

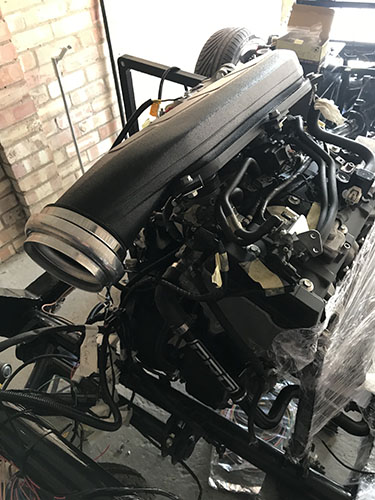

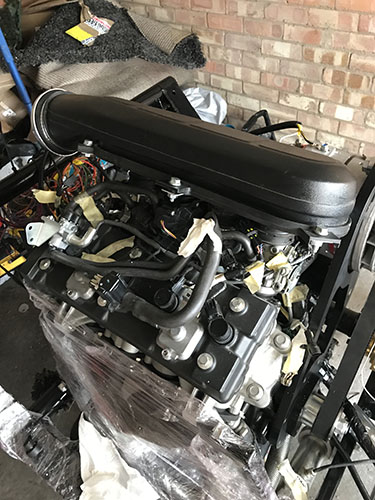

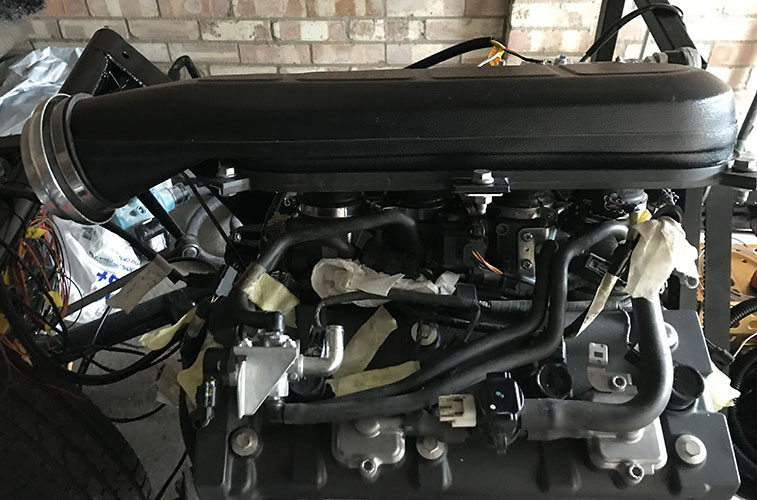

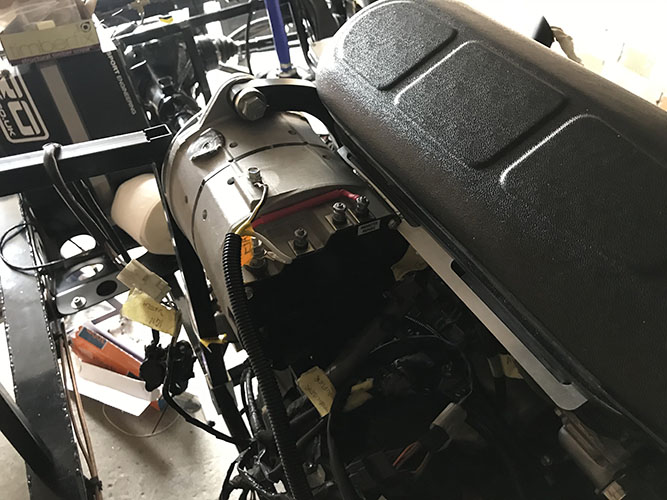

Air box now fitted to engine - bit of dremeling to get it to fit next to new alternator

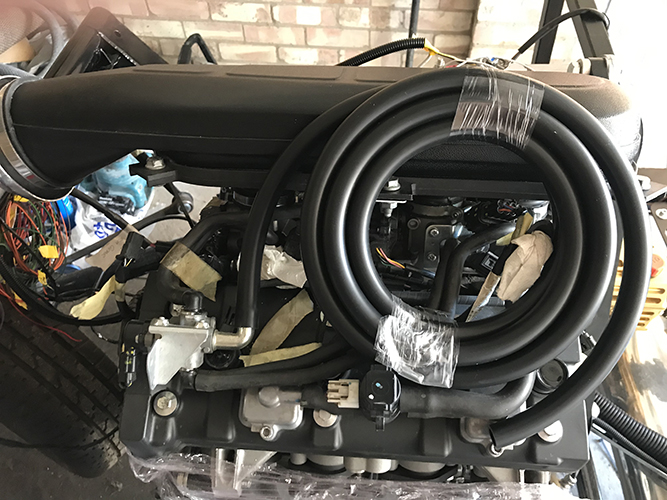

Rubber hose arrived to join to airbox, just waiting for the pipe fittings

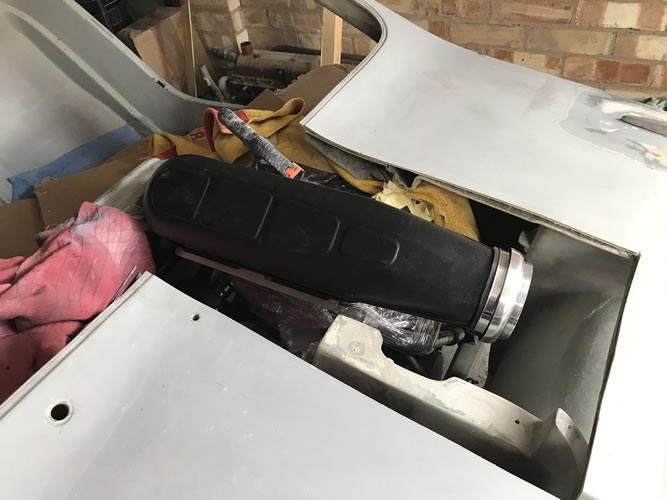

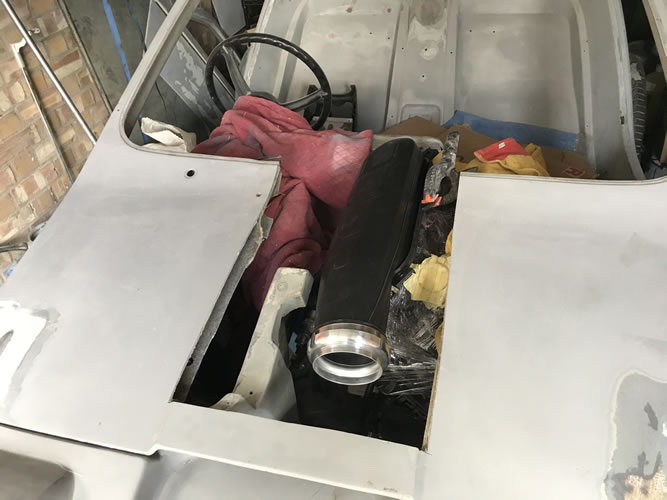

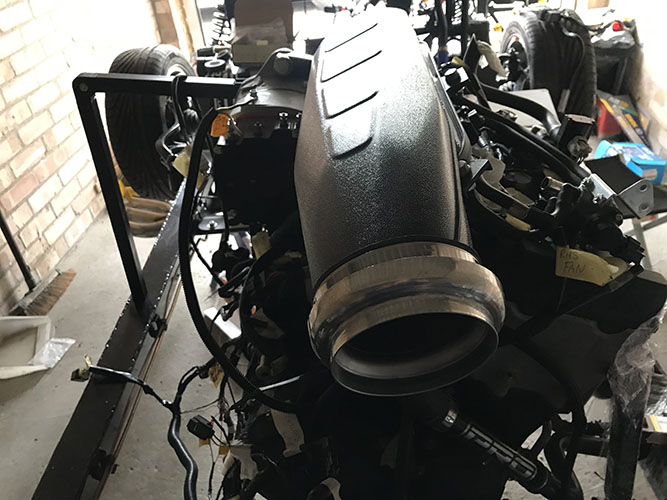

New airbox fits perfectly onto ZZR 1400 engine and pulls in fresh air from exisiting canopy scoop

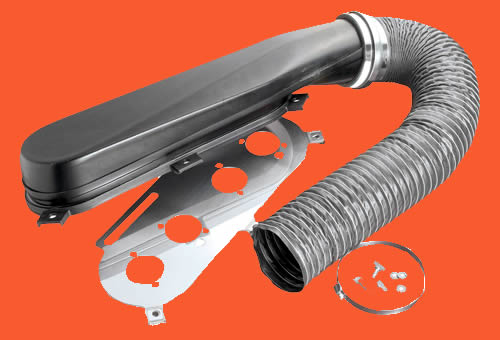

New from Pipercross is the 600-series sealed airbox designed to fit all 600 baseplate applications and is ideal for vehicles where intake space is restricted.

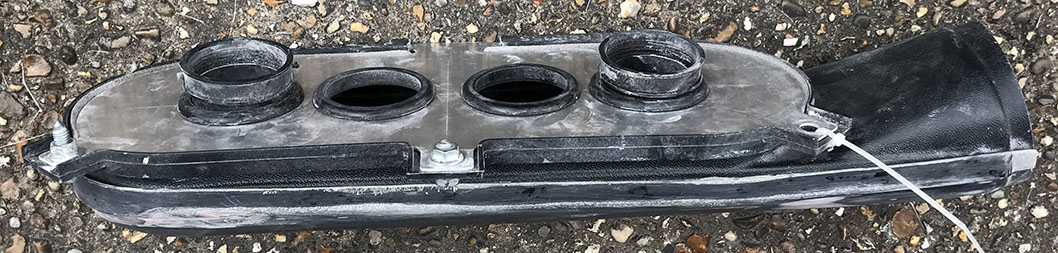

Mounting plate drilled to suite ZZR 1400 quad carbs
